Side Channel Pumps
Self-priming side channel pumps in stainless steel or brass for liquids without hard particles.
The best solution for transfers of liquids, thanks to the strong self-priming capability and the possibility to operate with discontinuous presence of the liquid at the suction.
They are designed for use in oenology (wine), the food industry (oil, vinegar, brine, fruit juices, beer, milk), agriculture (anticryptogamic and fertilizing fluids), nautical field (seawater) chemical industry (compatible corrosive liquids).
Pumps operating at speeds of 1400 rpm or lower are particularly suitable for pumping food liquids.
De zijkanaalpompen kunnen in beide richtingen werken.
The appropriate seals must be chosen for each application.
Side channel pumps in stainless steel or brass with bidirectional 12 or 24V DC motor
Usually used with batteries. It is possible to supply the motor with a switch and cable.
Flow rates from 28 to 150 l/min
Max. 17 meters head
Typical use:
-
Shipping (bilge, services, cooling, washing, seawater)
-
Agriculture (fungicides, liquid fertilizers, agricultural machinery parts, irrigation)
-
Transport (tankers, road transport vehicles, onboard water systems)

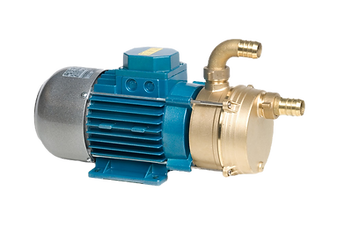

Side channel pumps in stainless steel or brass with single-phase or three-phase motor
These are the professional versions of self-priming transfer pumps. Equipped with an oversized single- or three-phase asynchronous motor, they are designed for heavy-duty applications.
These pumps have strong suction power, can even operate with a discontinuous fluid supply, and the flow direction can be reversed. They are truly multifunctional pumps that can solve various pumping problems. For every application, it is necessary to check suitability and select the correct seals.
The product is particularly suitable for use in:
-
Agriculture (fungicides, liquid fertilizers, agricultural machinery parts, irrigation)
-
Professional use (continuous and long-term use, heavy-duty applications, installation in systems)
-
Industry (installation in factories, machines, production lines)
-
Oenology (wine, must) food industry (oil, vinegar, brine, fruit juices, brewer's wort, milk)
-
Chemical industry (corrosive liquids)
-
Brewery (brewer's wort, beer, cleaning)
-
Oil industry (olive oil, seed oil)
Flow rates till 500 l/min
Pressure till 35m
Temperatures till 130°C
