Food Industry Pumps
Food pumps are hygienic pumps designed to transfer liquid or semi-liquid food products safely. They are built from food-grade materials (usually stainless steel) and support hygienic design standards such as the European food norm, and FDA. They are used for syrups, sauces, creams, dairy, beverages, and viscous products.
Peristaltic Food Pumps
A peristaltic food pump is a hygienic positive displacement pump that transfers food products through a flexible tube using rotating rollers. Because the pumped product only contacts the tube, the pump prevents contamination and is ideal for sensitive, abrasive, or corrosive food ingredients. Peristaltic food pumps offer precise dosing, gentle handling, and fast cleaning with no valves or seals.
AS Series:
-
Low pressure dosing
-
Flow rates till 2800 l/h
-
Delivery head till 4 Bar
-
Viscosity till 15000 cps
-
Suction head till 6 meter
-
Available in fixed speed,
variable gear reducer or
with integrated VFD
ASP Series:
-
Flow rates till 25000 l/h
-
Delivery head till 10 Bar
-
Viscosity till 60000 cps
-
Suction head till 8 meter
-
Available in fixed speed,
variable gear reducer or
with integrated VFD
Flussmann Lobe Pumps
A food-grade lobe pump is a hygienic positive displacement pump with rotating lobes that transfer liquid and semi-liquid food products gently. The pump handles viscous, sticky, or particulate foods without damaging solids. Lobe pumps are CIP/SIP-compatible, made from stainless steel, and fully compliant with food hygiene standards.
Why Peristaltic Pumps Are Ideal for Food Applications
-
Product only touches the tubing (no contamination risk)
-
Tube materials available with FDA/EC1935/2004 approvals
-
Excellent for shear-sensitive or particulate foods
-
Suitable for acids, flavourings, and aggressive additives
-
Very gentle pumping (no foaming, no damage to solids)
-
Highly accurate dosing for ingredients
-
Handles viscous, sticky, or abrasive products
-
Dry-run capable
-
Simple cleaning: swap tube, rinse, or use disposable tubes
-
No valves or seals = no dead zones
ATR Series:
-
Flow rates till 64000 l/h
-
Delivery head till 8 Bar
-
Viscosity till 60000 cps
-
Suction head till 8 meter
-
Available in fixed speed
or with integrated VFD
Advantages
-
Gentle pumping: Protects fruit pieces, vegetables, particles
-
Handles high viscosity:Ideal for creams, pastes, chocolate
-
Hygienic design: 3-A, EHEDG, FDA compliant
-
CIP/SIP compatible: Easy cleaning and sterilization
-
Reversible flow: Suitable for filling and emptying processes
-
Low pulsation: Stable flow ideal for dosing and filling
-
Stainless steel construction: Food safety and corrosion resistance
Flussmann Twin Screw Pumps
Twin screw pump is a positive displacement pump what means that the pump is transferring a certain volume of product in accordance with the speed and pitch of the screws. While turning, the two screws are forming closed chambers that are moving in an axial direction. This movement creates a vacuum at the inlet side and pressure at the outlet. Due to this double chamber technic, there is an almost pulsation free working with high and low viscosity products.
Advantages
• CIP running at high speeds
• Single and double mechanical seal options
• Even when running at high pressures, there is no rotor/rotor/body contact
• Speed up to 3,500 rpm
• Ideal for abrasive products
• Gentle handling of cut-sensitive products
• Totally drainable
• Bidirectional: It is possible to recover the remaining product from the pipeline
• Ideal for products with high air or gas content
• Perfect for vacuum applications with high and low viscosity products
Food AODD Pump
Our FDA-approved Air Operated Double Diaphragm pumps are designed for hygienic transfer of food, beverages, syrups, viscous ingredients, and shear-sensitive products in compliance with FDA, EC1935/2004, and GMP guidelines.

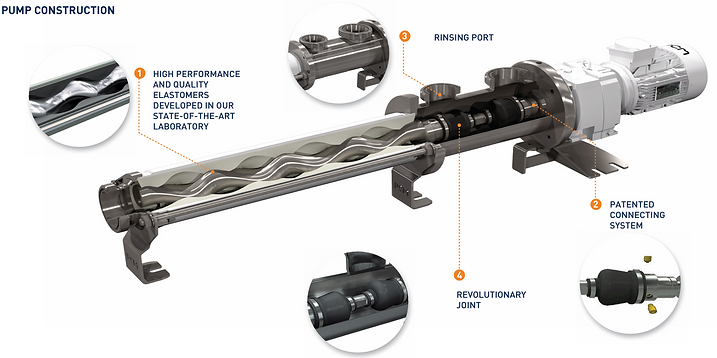

PCM Hycare™
The hygienic stainless steel progressing cavity pump with standard titanium flexible shaft
Benefits:
Sanitary protection, hygienic design, respect of the product
